Description:
Wheel drive rotary scrubber is new type rotary scrubber,It use wheels/tires for driving.running is more stable.
Function:Washing sticky clay mining minerals,kaolin.
Capacity:30-300tons per hour.
Feeding size:-230mm
Wheel Drive Rotary Scrubber is a new type of rotary scrubber, which is driven by wheel / tire and runs more stably. Rotary scrubber is a self generated rotary drum scrubber, which uses pebbles and rocks in the feed source to break and decompose clay, aggregates and soft oxides. The washer rotates slowly, like a huge washing machine. It stirs fine particles, super particles and water together, effectively destroys the soil matrix and releases the target minerals from hard clay, schist and rock. The crushed material is evenly slurried in the drum, and the self generated load is retained in the drum through reverse flight at the discharge end of the drum. Mud and washed oversized particles overflow to the discharge throat of the cylinder and enter the concentric outlet drum.
Generally, the Wheel Drive Rotary Scrubber has a screening part at the end for screening. Known as scrubber drum screen, it is the main washing equipment in the mining industry. It is widely used to wash alluvial / sand ores and stones containing a large amount of viscous clay. Such as viscous clay, gold, diamond, tin, chromium, tantalum and niobium processing plants.

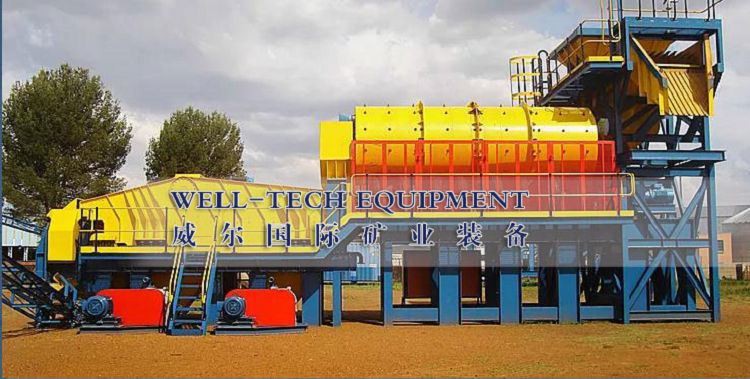

Gold wash plant to Australia
Fearture:
1:Designed to break up alluvial gravels, clays and sand
2:Running stable,use wheels for driving.
3:Long working life,with Natural Rubber lining.
4:Screen can be polyurethane screen or High manganese steel net.
5:Can accept material up to 230mm.
6:Thickening type steel plate for the drum.
Use tires for driving Rotary scrubber
Rotary scrubber drum washing plant to Russia
Introduction of Trommel Scrubber Washer
Trommel Scrubber is a main washing equipment in mining industrial, widely used for washing alluvial type/sand type ores and stones, which with much sticky clay, with much good washing effect for clay.
This machine with two parts: drum scrubber and screen. The drum scrubber is for washing ore, screen is for sieving different size particles after washing.
Screen Material of Trommel Scrubber
1. Manganese steel: normal material, not easy to replace, 2-3 monthes life time.
2. PU material: wear-resistance, long life time 4-6 monthes, corrosion resistant, splicing technology, replacable, very easy to replace.
3. Stainless steel material : wear-resistance, long life time 4-6 monthes, corrosion resistant, splicing technology, not easy to replace.
Linning Plate Material of Rotary Scrubber
In order to increase the washing effect, we put linning plates insider of the drum scrubber part, it can be made below two kinds material:
1. Iron material spiral plates: normal material, can't be replaceable, welded inside drum.
2. Natual Rubber lined plates: wear-resistance, long life time, corrosion resistant, fixed with screw, replacable, easy to replace.
Main structure of Trommel Scrubber Washer
1. Drum scrubber : For washing the clay.
2. Trommel scrubber Inner plate: separating the clay and ores, washing more clean the clay.
3. Trommel scrubber Sieving screen: for sieving different sizes ores, the screen mesh size& layer quantity & screen materials can be made according to customer need.
4. Motor: electric or diesel according to your needs.
5. Carrier rollers: For support the drum
6. Gear, Reduction Box, coupling.
7. Machine Frame: Supporting the reduction box and motor.
Technical Specifications
Model | Drum Size (m) | Feeding size (mm) | Capacity (T/h) |
WXT1030 | Φ1.0×3.0 | ≤100 | 10-20 |
WXT1230 | Φ1.2×3.0 | ≤100 | 20-40 |
WXT1530 | Φ1.5×3.0 | ≤150 | 50～60 |
WXT1545 | Φ1.5×4.5 | ≤150 | 60～80 |
WXT1560 | Φ1.5×6.0 | ≤150 | 90～100 |
WXT1845 | Φ1.8×4.5 | ≤170 | 100～130 |
WXT1860 | Φ1.8×6.0 | ≤170 | 110～140 |
WXT2060 | Φ2.0×6.0 | ≤210 | 120～160 |
WXT2265 | Φ2.2×6.5 | ≤230 | 160～180 |
Application:
Alluvial gold scrubber wash plant in Ghana
Tire driving rotary scrubber
Wheel drive rotary drum scrubber mining
About us:
Why Choose Us?
We are manufacturer, not trade company.
-Quality: Guarantee
-Delivery: On Time
-Communication: In Time
-After-Sales Service: Excellent
-Engineer Team: Professional & more than 20 years experience on site
-Price: Competitive
We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.
What is the capacity do you need per hour?
if there is a lot sticky clay of raw material?
We have two kind of drive way, you would like to which type rotary scrubber?
Use wheels for driving or use gear for driving?
with rubber liner or not?
Pre-Sales Service
* Inquiry and consulting support.
* Studying customer minerals details.
* Design most suitable solution flowchart.
* Provide machine list and quotation
* Sample testing support.
* View our Factory.
After-Sales Service
* Provide layout drawing.
* Inspection and test machine before shipping
* Engineers available to service machinery overseas.
More details,please send us inquiry,then we will reply within 12hours.thanks!
